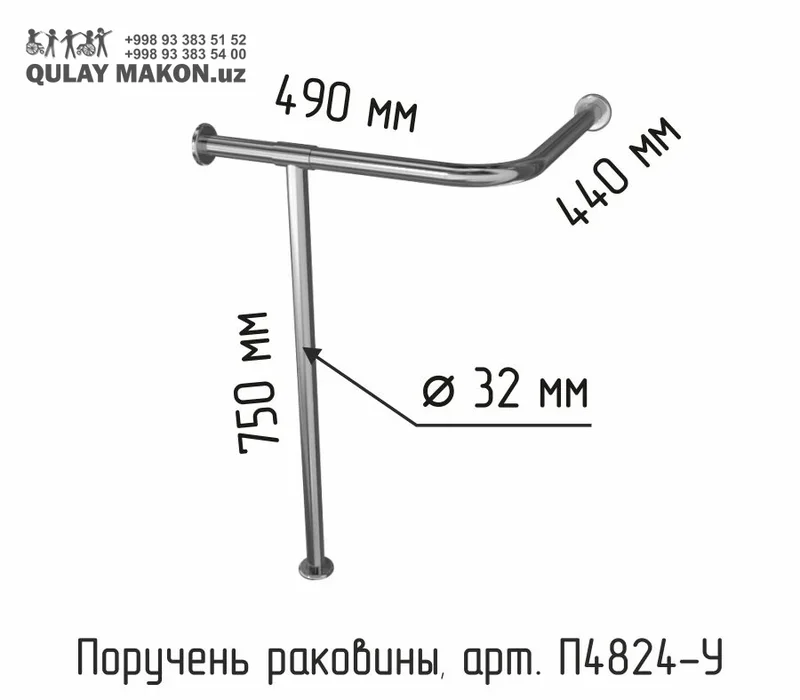

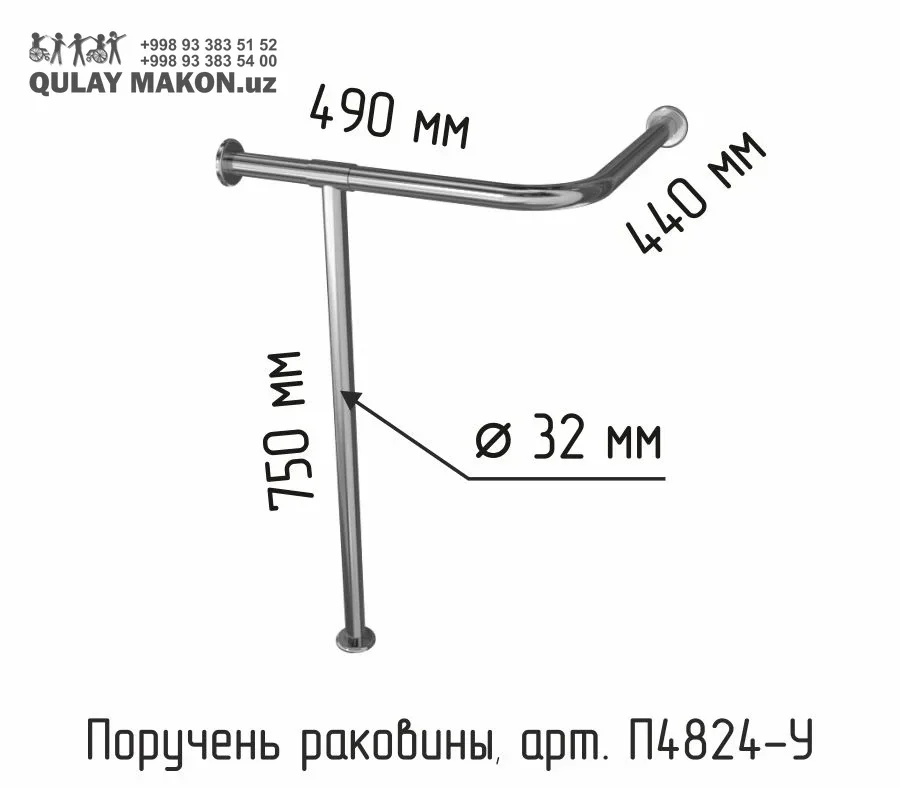

T-shaped sink handrail (art. П4824-У) — a T-shaped support tube under the washbasin: the upper horizontal part (490 mm left + 440 mm right) fixes to wall flanges, while the vertical leg (750 mm) descends and is installed on the floor. The tube diameter is 32 mm — a size convenient for gripping.
The structure protects the sink from load (through the vertical leg the load is transferred to the floor) and gives people with disabilities support on two sides at the washbasin. The product is made of stainless steel: rust-free, hygienic, moisture-resistant.
IMPORTANT: since the handrail is a load-bearing element, it must be installed correctly only on a strong, load-bearing wall and a solid floor base.
Target institutions: hospitals, nursing homes, sanatoriums, hotels, government facilities and adapted restrooms.
For people with disabilities, the elderly and patients. Protects against falling while washing hands at the sink, reduces the load on the washbasin. Used in government and private adapted restrooms.
1. First measure the washbasin size and the wall-floor clearances
2. Mark the upper horizontal on the wall at the sink height (about 800–850 mm)
3. Ensure the vertical leg stands level with the floor
4. Fix the flange and leg holes with dowels+screws, check the strength
Restroom, Toilet, Hospital, Nursing home, Sanatorium, Hotel
| Feature | T-shaped sink handrail (wall + floor leg, art. П4824-У) — s… | Straight grab bar (600 mm) — stainless steel | PVC corridor handrail |
|---|---|---|---|
| Price (UZS) | 1 850 000 | 500 000 | 495 000 |
| Color | Silver (stainless) | Silver (stainless) | — |
| Type | T-shaped grab bar for sink (horizontal to wall + vertical floor leg) | Straight grab bar (handrail) | — |
| Surface | Smooth, polished | Smooth or matte (anti-slip) | — |
| Material | Stainless steel | Stainless steel | — |
| Installation | Solid load-bearing wall + solid floor only | Only on solid load-bearing wall | — |
What material and diameter is the grab rail?
It is made from stainless or powder-coated steel tube. The diameter is chosen in the 32-50 mm range so the fingers can wrap fully around the rail for a secure grip. The surface is smooth with a non-cold coating and resists both moisture and disinfectants used in public buildings.
How is the grab rail fixed to the wall?
It is anchored into the load-bearing wall. Separate fixing solutions are used for brick, concrete and plasterboard walls — plasterboard requires an additional reinforcing plate. When installed correctly the rail supports a point load of more than 100 kg and lasts for many years of daily use.
At what height is it installed?
The standard height is 70-85 cm from floor level. In sanitary rooms it is placed next to the toilet and washbasin; in corridors it follows a continuous route of travel. Corner sections and areas beside doors are calculated separately. Qulay Makon measures the site and prepares a layout plan free of charge.
What standards does the product comply with?
It is manufactured in line with the current construction norms and state standards for adapting the environment for people with disabilities. This matters when a site is handed over and inspected, because accessibility work has to be documented. Qulay Makon supplies every product with technical documentation and, where required, data confirming compliance.
How can I place an order and pay?
You can submit a request directly on the site, call us by phone or write on Telegram. An operator will confirm the details, check availability and prepare a calculation. Payment can be made in cash, by bank transfer or online. For companies, a contract, invoice and the full set of documents are prepared.
Are there terms for large orders?
Yes. For fully equipping a school, hospital, shopping centre or other facility, a separate commercial offer is prepared and the price is revised according to volume. In such projects the measurement, delivery and installation are planned in stages. The document package required for tenders and public procurement is also provided.
