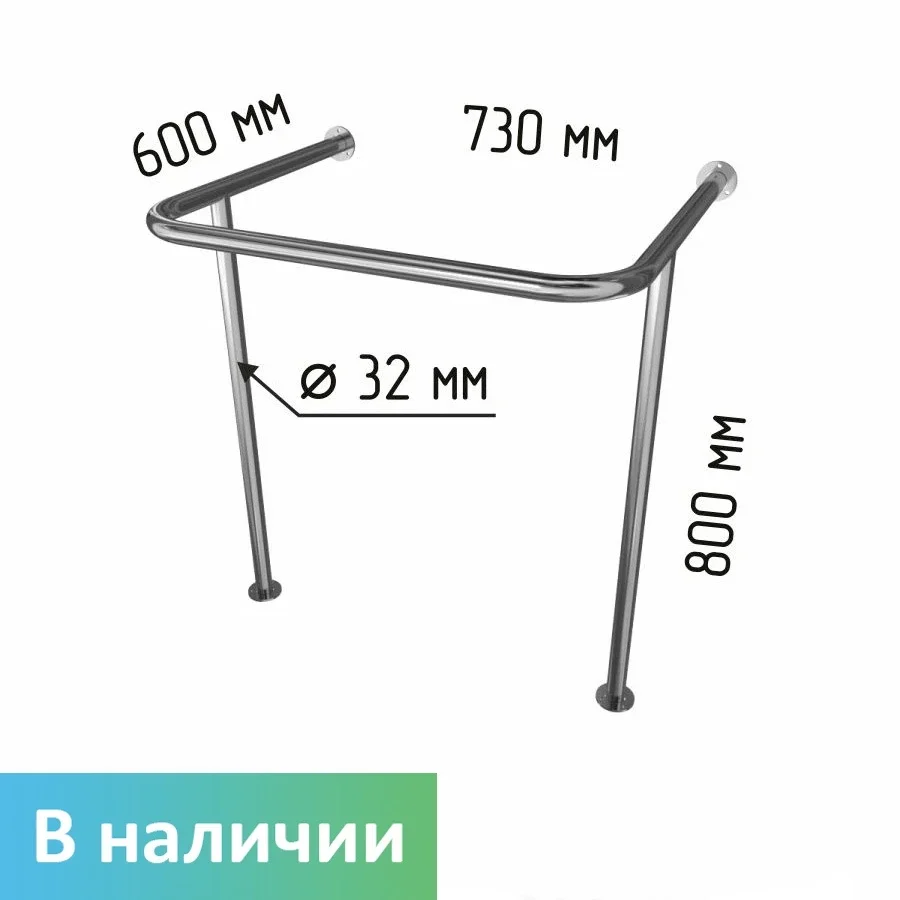

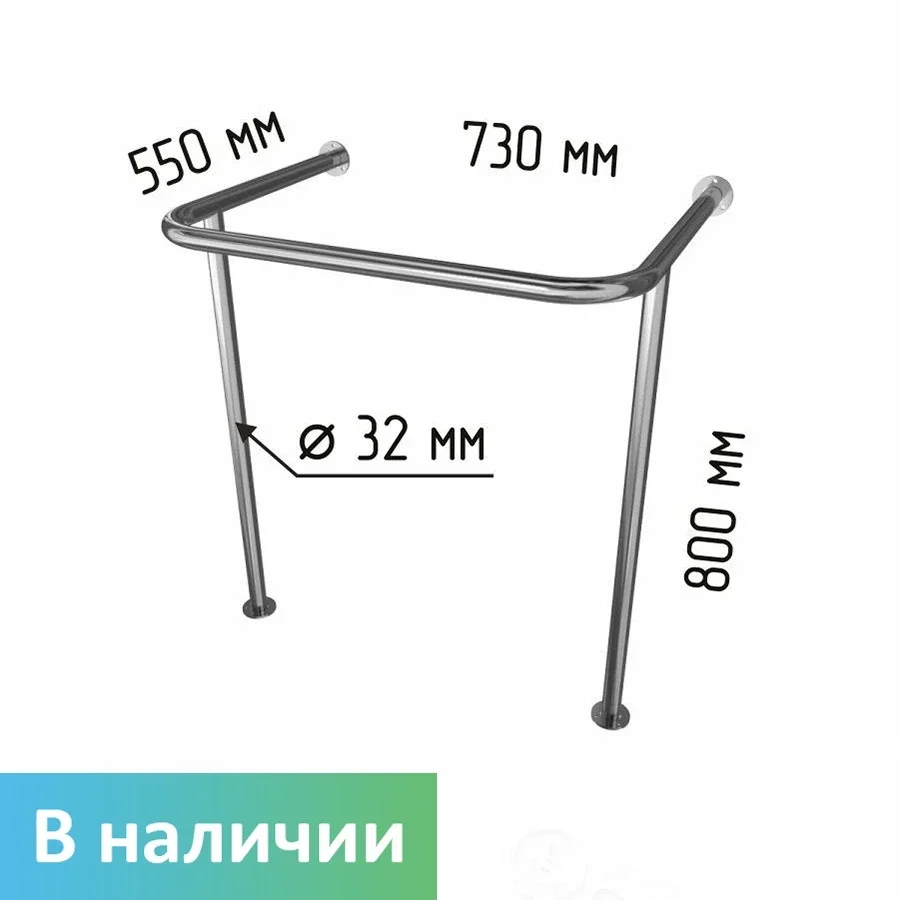

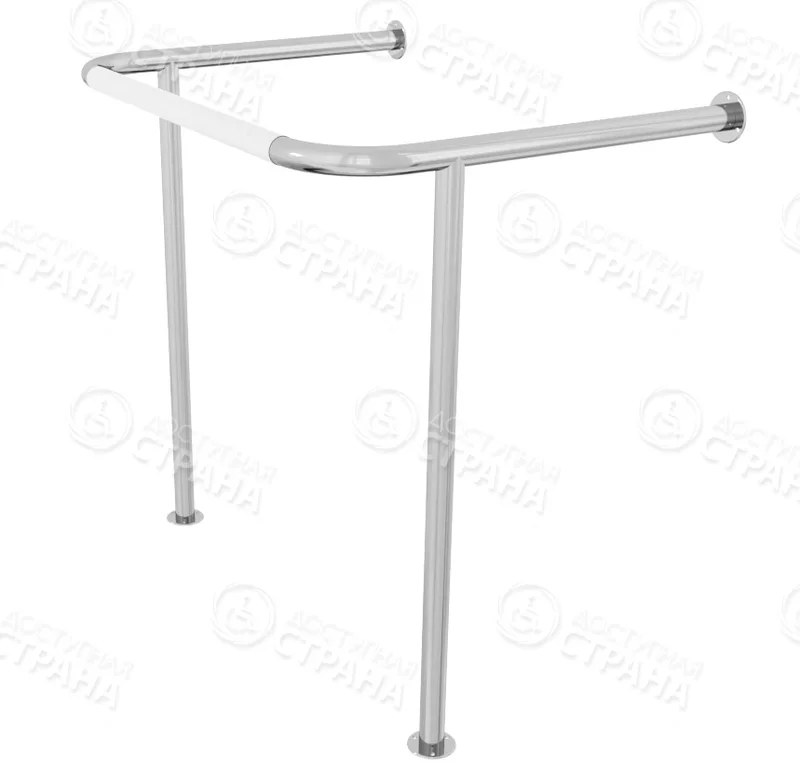

Sink support frame (wall-to-floor, U-shaped) — a U-shaped support tube surrounding the washbasin, fixed to the wall and floor on both sides. It makes sitting down and standing up at the sink safe for people with disabilities, the elderly and patients: it includes support on two sides and reduces the load on the sink.
The frame is made of stainless steel: rust-free, hygienic, moisture-resistant. The tube diameter is 32 mm — a size convenient for gripping. The surface is smooth and withstands repeated sterilisation.
IMPORTANT: since the support frame is a load-bearing element, it must be installed correctly only on a strong, load-bearing wall and a solid floor base. Installation should be performed by a qualified fitter.
Target institutions: hospitals, nursing homes, sanatoriums, hotels, government facilities and adapted restrooms.
For people with disabilities, the elderly and patients. A frame ensuring safety when transferring from a wheelchair to the washbasin and when sitting down and standing up at the sink. A mandatory element in government and private adapted restrooms.
1. Install the frame only on a strong, load-bearing wall and solid floor
2. Choose the U-frame size to match the sink size
3. Mark the positions of the wall flanges and floor legs, fix with dowels+screws
4. Fit the cover flanges and check the strength of the structure
Restroom, Toilet, Hospital, Nursing home, Sanatorium, Hotel
| Feature | Sink support frame (wall-to-floor, U-shaped) — stainless st… | Straight grab bar (600 mm) — stainless steel | PVC corridor handrail |
|---|---|---|---|
| Price (UZS) | 550 000 | 500 000 | 395 000 |
| Color | Silver (stainless) | Silver (stainless) | — |
| Type | Rakovina ushlash ramkasi (U-shakl, devor-pol) | To'g'ri ushlash relsi (poruchen) | — |
| Surface | Smooth, polished | Silliq yoki mat (anti-slip) | — |
| Material | Stainless steel | Stainless steel | — |
| Installation | Faqat mustahkam, yuk ko'taruvchi devor + qattiq pol | Only on solid load-bearing wall | — |
What material and diameter is the grab rail?
It is made from stainless or powder-coated steel tube. The diameter is chosen in the 32-50 mm range so the fingers can wrap fully around the rail for a secure grip. The surface is smooth with a non-cold coating and resists both moisture and disinfectants used in public buildings.
How is the grab rail fixed to the wall?
It is anchored into the load-bearing wall. Separate fixing solutions are used for brick, concrete and plasterboard walls — plasterboard requires an additional reinforcing plate. When installed correctly the rail supports a point load of more than 100 kg and lasts for many years of daily use.
At what height is it installed?
The standard height is 70-85 cm from floor level. In sanitary rooms it is placed next to the toilet and washbasin; in corridors it follows a continuous route of travel. Corner sections and areas beside doors are calculated separately. Qulay Makon measures the site and prepares a layout plan free of charge.
What standards does the product comply with?
It is manufactured in line with the current construction norms and state standards for adapting the environment for people with disabilities. This matters when a site is handed over and inspected, because accessibility work has to be documented. Qulay Makon supplies every product with technical documentation and, where required, data confirming compliance.
How can I place an order and pay?
You can submit a request directly on the site, call us by phone or write on Telegram. An operator will confirm the details, check availability and prepare a calculation. Payment can be made in cash, by bank transfer or online. For companies, a contract, invoice and the full set of documents are prepared.
Are there terms for large orders?
Yes. For fully equipping a school, hospital, shopping centre or other facility, a separate commercial offer is prepared and the price is revised according to volume. In such projects the measurement, delivery and installation are planned in stages. The document package required for tenders and public procurement is also provided.
