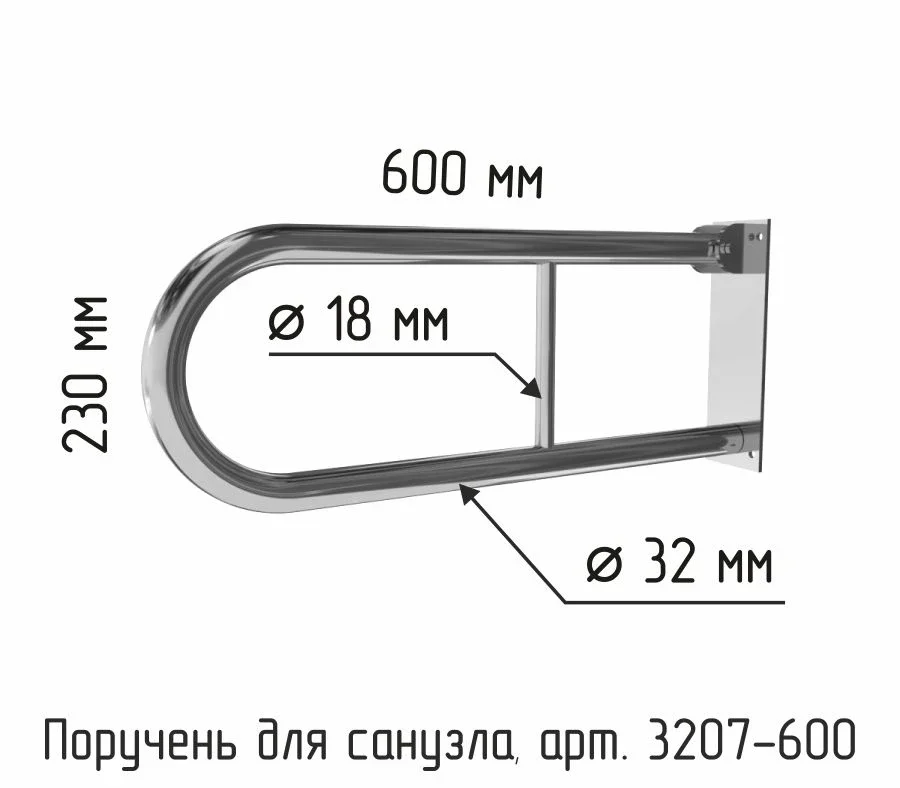

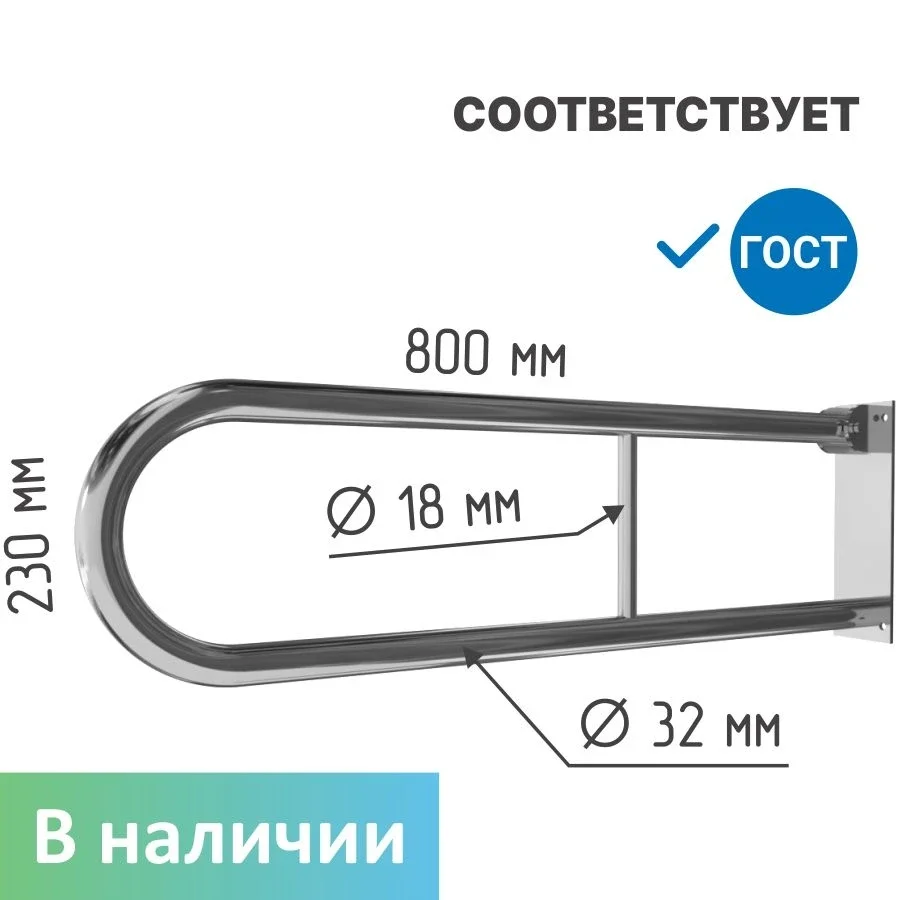

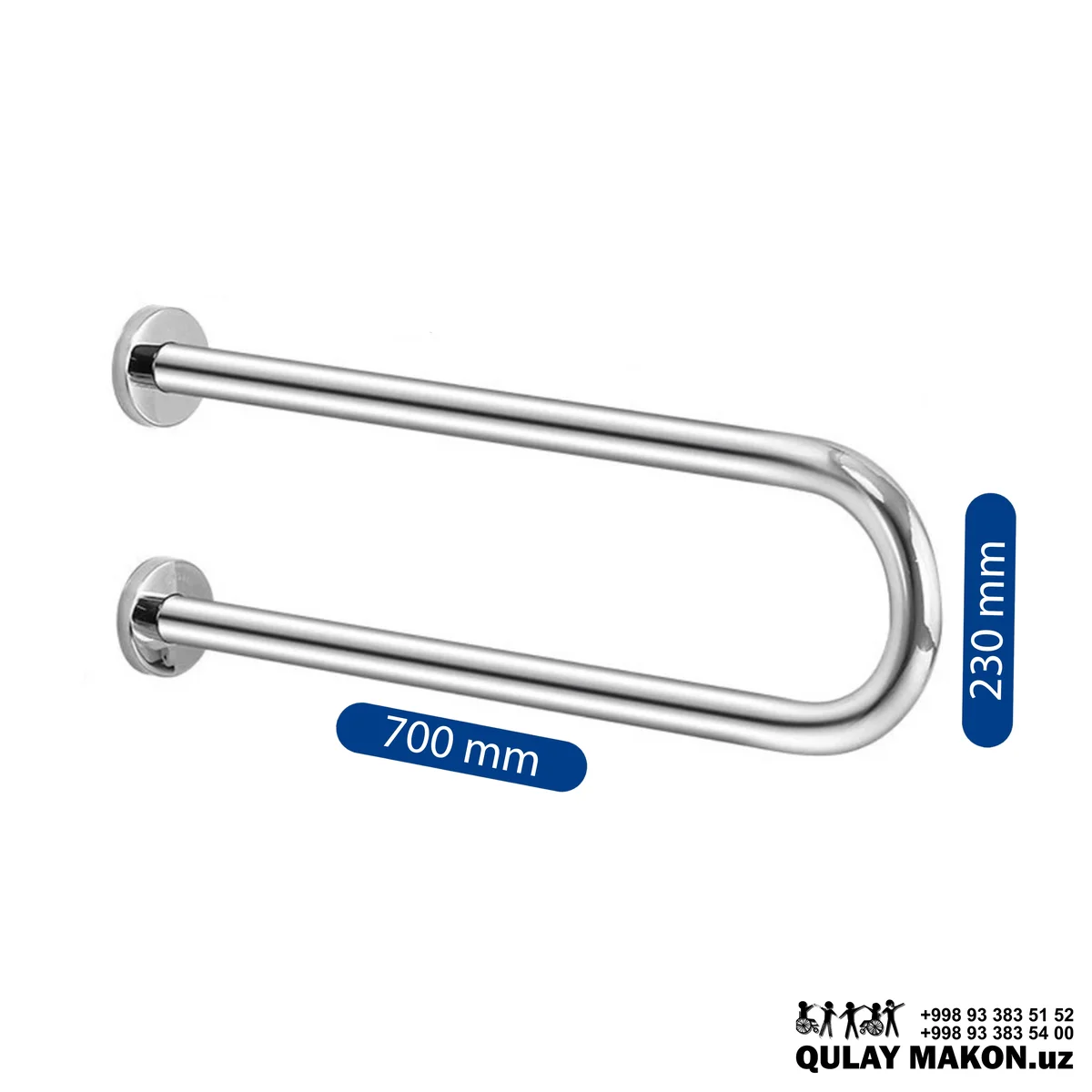

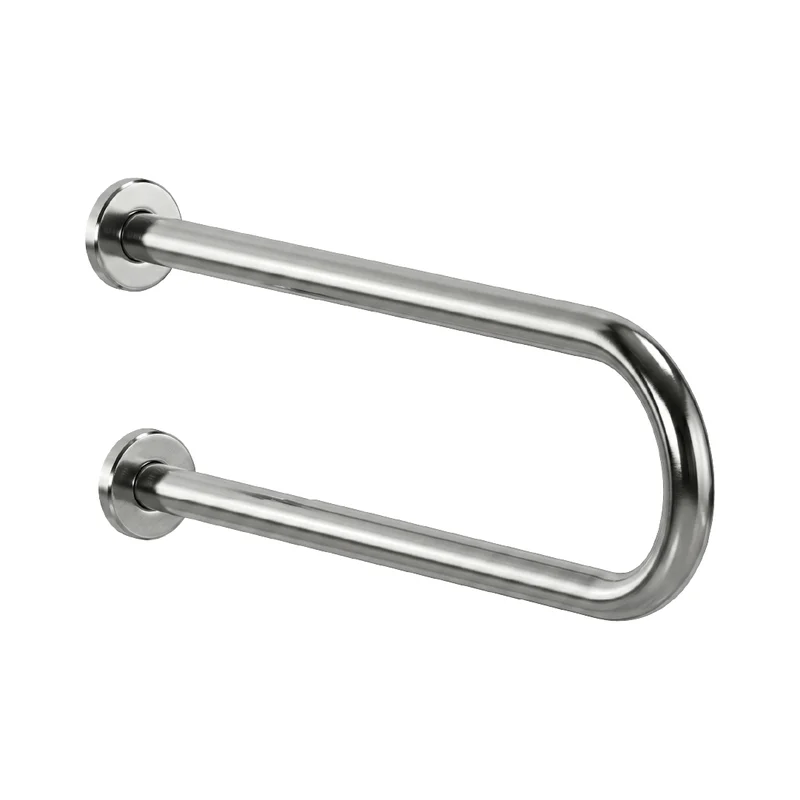

The wall-mounted U-shaped (oval) grab bar is a classic support bar that forms a long horizontal grip surface and fixes to the wall via two round flanges at its ends. The oval (elongated U) shape gives the hand a long continuous grip zone — the user can hold any point of the bar and lean on it when rising or moving. Fixing the bar to the wall at two points gives it stability, while the round flanges ensure a compact and aesthetic wall installation. The simplicity of the design makes it reliable and easy to maintain: there are no extra mechanisms, only a strong tube and flanges. Such a bar is used in a corridor, an entrance passage, by a sink or bath, as well as a support when rising from a seated position. The long grip zone is convenient for users of different heights. The product is made of stainless steel: hygienic, rust-free, moisture-resistant and reliably bears a person's weight. IMPORTANT: since the grab bar is a load-bearing element, it must be installed correctly only on a strong, load-bearing wall. The U-shaped horizontal grab bar is used in hospitals, nursing homes, sanatoriums, hotels, government institutions and adapted restrooms. It improves safety and gives the user independence.
For people with disabilities, the elderly and patients. For hospitals, nursing homes, sanatoriums, hotels and government institutions where a long horizontal support is needed by a corridor, sink or bath.
1. Install the bar only on a strong, load-bearing wall
2. Mark the holes of the two flanges on one horizontal line
3. Fix both flanges with dowels and screws
4. Check that the bar does not move and holds firmly
Corridor, By the sink, Bathroom, Toilet, Hospital, Nursing home
| Feature | Wall-mounted U-shaped (oval) horizontal grab bar — stainles… | Straight grab bar (600 mm) — stainless steel | Stainless steel railing |
|---|---|---|---|
| Price (UZS) | Price on request | 500 000 | 850 000 |
| Color | Silver (stainless) | Silver (stainless) | — |
| Type | Devorga U-shaklidagi (oval) gorizontal ushlash relsi | To'g'ri ushlash relsi (handrail) | — |
| Material | Stainless steel | Stainless steel | — |
| Installation | Only on solid load-bearing wall | Only on solid load-bearing wall | — |
| Fastening | Ikki yumaloq flanes (rozetka) | Yashirin qoplamali flaneslar (montaj to'plami bilan) | — |
What material and diameter is the grab rail?
It is made from stainless or powder-coated steel tube. The diameter is chosen in the 32-50 mm range so the fingers can wrap fully around the rail for a secure grip. The surface is smooth with a non-cold coating and resists both moisture and disinfectants used in public buildings.
How is the grab rail fixed to the wall?
It is anchored into the load-bearing wall. Separate fixing solutions are used for brick, concrete and plasterboard walls — plasterboard requires an additional reinforcing plate. When installed correctly the rail supports a point load of more than 100 kg and lasts for many years of daily use.
At what height is it installed?
The standard height is 70-85 cm from floor level. In sanitary rooms it is placed next to the toilet and washbasin; in corridors it follows a continuous route of travel. Corner sections and areas beside doors are calculated separately. Qulay Makon measures the site and prepares a layout plan free of charge.
What standards does the product comply with?
It is manufactured in line with the current construction norms and state standards for adapting the environment for people with disabilities. This matters when a site is handed over and inspected, because accessibility work has to be documented. Qulay Makon supplies every product with technical documentation and, where required, data confirming compliance.
How can I place an order and pay?
You can submit a request directly on the site, call us by phone or write on Telegram. An operator will confirm the details, check availability and prepare a calculation. Payment can be made in cash, by bank transfer or online. For companies, a contract, invoice and the full set of documents are prepared.
Are there terms for large orders?
Yes. For fully equipping a school, hospital, shopping centre or other facility, a separate commercial offer is prepared and the price is revised according to volume. In such projects the measurement, delivery and installation are planned in stages. The document package required for tenders and public procurement is also provided.
